Rincian produk
Tempat asal: Cina
Nama merek: OUB
Nomor model: 56C-22-12460
Syarat Pembayaran & Pengiriman
Kuantitas min Order: 10 Pcs / Terima pesanan percobaan
Harga: negotiable
Kemasan rincian: Tas PP Di Dalam, Kotak Karton Di Luar
Waktu pengiriman: Dalam 5-15 hari setelah mendapatkan desposit Anda
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 1000 pcs
Bagian No.: |
56C-22-12460 |
Segel no.: |
56C2212460 |
Tipe Segel: |
Qlft |
Rentang Tekanan: |
0-0,5Mpa |
Bahan: |
Baja+NBR |
Sertifikat: |
ISO9001 |
Suhu: |
-10 ~+120 ℃ |
Layanan: |
OEM dan ODM |
Bagian No.: |
56C-22-12460 |
Segel no.: |
56C2212460 |
Tipe Segel: |
Qlft |
Rentang Tekanan: |
0-0,5Mpa |
Bahan: |
Baja+NBR |
Sertifikat: |
ISO9001 |
Suhu: |
-10 ~+120 ℃ |
Layanan: |
OEM dan ODM |

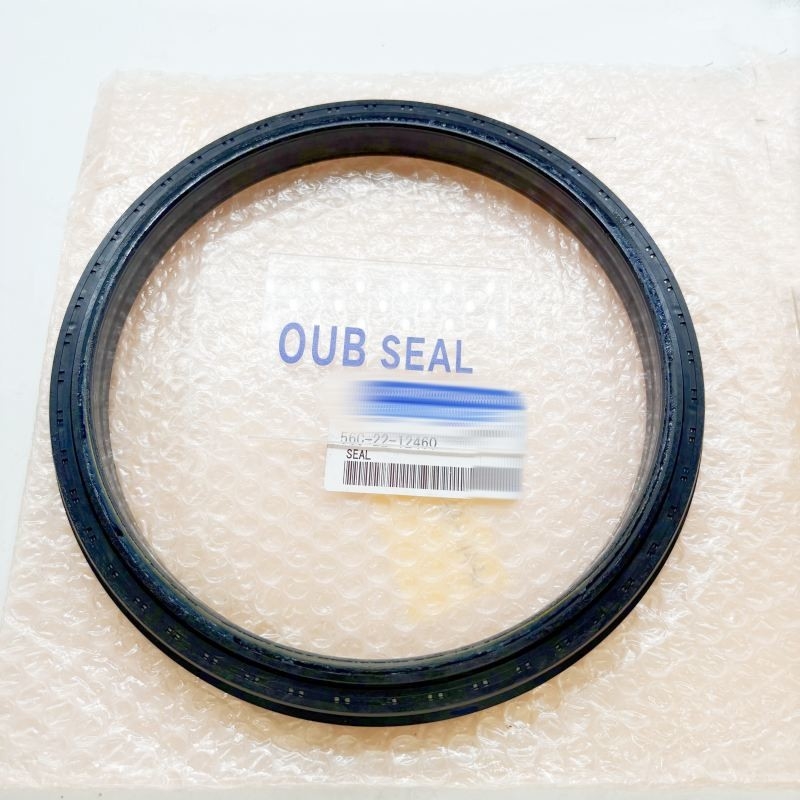

1. Rincian Kit Segel Perbaikan
| Bagian NO | 56C-22-12460 |
| Mesin | Komatsu |
| Ukuran | OEM |
| Bahan | NBR |
| Jenis segel | QLF |
2Bagian pada sumbu belakang kelompok, drive terakhir L.H. :
| Posisi. | Bagian No. | Qty | Nama bagian |
| 56C-22-14000 | [1] | Pengumpulan Drive akhir. | |
| 56C-22-14001 | [1] | Final Drive Assembly, L.H. | |
| 56C-22-20003 | [1] | Pengumpulan poros | |
| 56C-22-20004 | [1] | Perangkat poros, belakang | |
| 56C-22-22000 | [1] | Pengumpulan Drive akhir. | |
| 56C-22-22001 | [1] | Penggerak akhir, belakang | |
| 35 | 01010-60820 | [12] | Bolt Komatsu |
| 13 | 01010-61235 | [8] | Bolt Komatsu |
| 22 | 01010-61450 | [8] | Bolt Komatsu |
| 18 | 01252-41025 | [3] | Bolt Komatsu |
| 36 | 01643-30823 | [12] | Mesin cuci Komatsu |
| 14 | 01643-31232 | [8] | Mesin cuci Komatsu |
| 4 | 04064-06020 | [1] | Ring, Snap |
| 9 | 04260-01587 | [3] | Bola, Komatsu Baja |
| 27 | 07000-15170 | [1] | O-ring Komatsu OEM |
| 15 | 07000-15280 | [1] | O-ring |
| 17 | 07000-15410 | [1] | O-ring |
| 25 | 07002-12434 | [1] | O-ring |
| 11 | 07002-13634 | [1] | O-ring |
| 24 | 07044-12412 | [1] | Plug Komatsu |
| 10 | 07044-13620 | [1] | Plug Komatsu |
| 20 | 23W-22-22350 | [1] | Komatsu Bearing |
| 16 | 286-22-12630 | [1] | Tombol Komatsu |
| 23 | 421-22-12160 | [2] | Shim, T=0,05mm Komatsu |
| 23 | 421-22-12170 | [2] | Shim, T = 0,2mm Komatsu |
| 23 | 421-22-12180 | [1] | Shim, T=0.5mm Komatsu |
| 23 | 421-22-12190 | [2] | Shim, T=1.0mm Komatsu |
| 21 | 421-22-12220 | [1] | Komatsu pemegang |
| 2 | 421-22-12350 | [1] | Spacer Komatsu |
| 34 | 421-22-12360 | [6] | Piring Komatsu |
| 6 | 421-22-12770 | [6] | Komatsu Bearing |
| 32 | 421-22-12790 | [1] | Komatsu Bearing |
| 8 | 424-22-12510 | [3] | Pin Komatsu |
| 33 | 56B-22-12341 | [1] | Hub Komatsu |
| 33 | 56B-22-12342 | [1] | Hub Komatsu |
| 1 | 56B-22-12420 | [1] | Peralatan, Sun Komatsu |
| 5 | 56B-22-12530 | [3] | Gear Komatsu |
| 31 | 56B-22-12541 | [1] | Gear, Ring Komatsu |
| 7 | 56B-22-12610 | [1] | Pembawa Komatsu |
| 12 | 56B-22-12621 | [1] | Tutup |
| 3 | 56C-22-12411 | [1] | Selang |
| 26 | 56C-22-12460 | [1] | Seal Komatsu |
| 19 | 56C-22-12631 | [1] | Pengendali |
| 30 | 56C-22-12680 | [1] | Pelindung |
| 29 | 56C-22-12712 | [1] | Hub |
| 28 | 56C-22-13210 | [1] | Tabung, spiral |
3. 56C-22-12460Penayangan gambar
4. SEAL KOMATSU Katalog:
| Bagian NO. | Bagian NO. | Bagian NO. | Bagian NO. |
| 56C-22-12460 | 154-30-00450 | 07018-10352 | 6711-29-3521 |
| 6211-61-1533 | 21T-30-00180 | 07018-20452 | 423-22-22461 |
| 195-63-94170 | 232-15-19220 | 07018-12205 | 6208-21-1310 |
| 07145-00060 | 234-15-29210 | 07018-10904 | 111-92-11250 |
| 198-63-75190 | 234-15-29220 | 07018-01104 | 707-56-70540 |
| 07016-20908 | 569-15-12860 | 07018-11805 | 201-25-11110 |
| 705-17-02830 | 568-15-12850 | 07018-12005 | 385-10174071 |
| 566-09-31161 | 144-15-22881 | 07018-00954 | 705-17-01470 |
| SB9512013 | 07016-00306 | 07010-00050 | 111-92-11190 |
5. FAQ
Q1. Jenis kit layanan silinder apa yang Anda miliki?
A1. kami memiliki kit silinder seperti boom, lengan, ember, angkat bilah, miring, ripper, counter weigh, penyesuai, posisi silinder.
Saya ingin membeli21T-30-00180Kit segel silinder BOOM sekitar 5 set, apakah Anda memiliki?
Terima kasih atas kepercayaanmu, aku bisa mengirim PI, berikan emailmu.
Q3. Dapatkah Anda mengutip untuk ukuran dan gambar?
A3. Karena alasan!Kami dapat memeriksa oleh bagian no.atau mesin no.atau ukuran atau gambar. karena kami profesional.
5. Pameran & Gudang
Segel Minyak, Segel Hidraulik, Kit Segel Silinder, Dan Lebih Banyak
