Rincian produk
Tempat asal: Cina
Nama merek: OUB
Nomor model: 213-1366
Syarat Pembayaran & Pengiriman
Kuantitas min Order: 10 Pcs / Terima pesanan percobaan
Harga: negotiable
Kemasan rincian: PP Bag Inside.outer adalah karton dengan bungkus film.
Waktu pengiriman: Dalam 5-15 hari setelah mendapatkan desposit Anda
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 1000 pcs
Bagian No.: |
213-1366 |
Model: |
E966 E972 |
mesin: |
Pemuat Roda |
Ukuran: |
8,69 inci |
Nama: |
bos |
Silinder: |
DUKUNGAN TRUNION |
Suhu: |
-30℃-+160℃ |
Bahan: |
Aldehida fenolik |
Warna: |
Hitam |
Bagian No.: |
213-1366 |
Model: |
E966 E972 |
mesin: |
Pemuat Roda |
Ukuran: |
8,69 inci |
Nama: |
bos |
Silinder: |
DUKUNGAN TRUNION |
Suhu: |
-30℃-+160℃ |
Bahan: |
Aldehida fenolik |
Warna: |
Hitam |

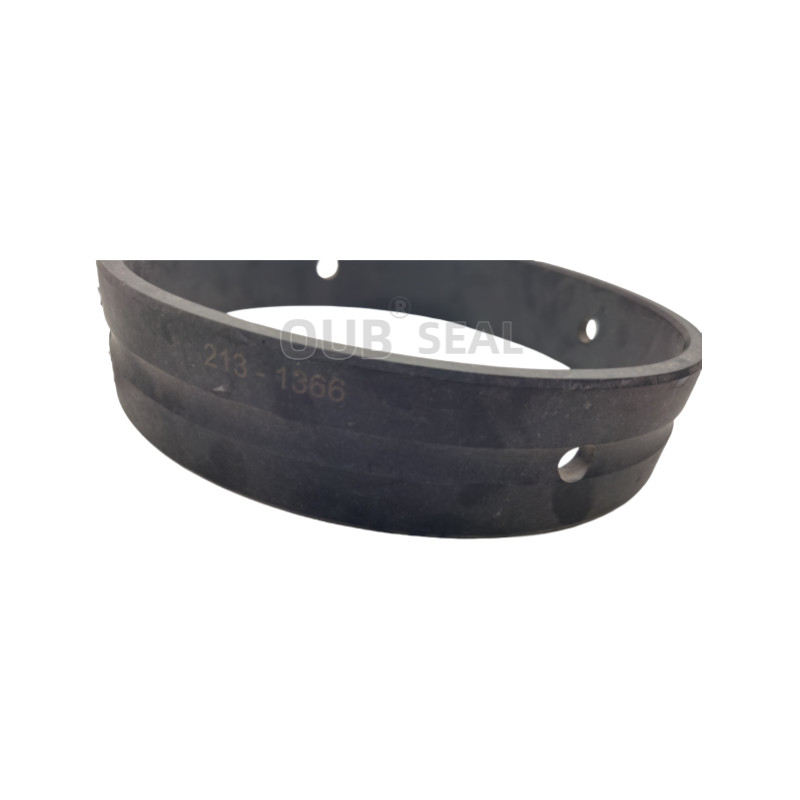

1. Detil cepat dari lip seal 707-44-90150
| Bagian NO. | 2131366 |
| Mesin | E |
| Ukuran | 8.69INCH |
| Bahan | Fenol aldehida |
| Jenis segel minyak | BUSHING |
2. 213-1366 bagian untuk loader roda E 966M:
| Posisi. | Bagian No. | Qty | Nama bagian |
| 1 | 8T-0336 | [2] | FITNING-PRESSURE RELIEF |
| 2 | 9G-5317 | [2] | SEAL GP-DUO-CONE |
| 3 | 9M-2744 | [2] | KONUS-BEARING (ROLLER TAPERED) |
| 4 | 130-8707 B | [1] | SHIM PACK (Termasuk 15-SHIMS) |
| 5 | 133-4292 | [1] | TIPU SEAL-LIP |
| 6 | 156-4773 | [1] | Pengendali |
| 7 | 248-0833 | [1] | Plug AS-DRAIN (AXLE OIL) |
| 3S-9233 | [1] | SEAL-O-RING | |
| 5L-4759 | [1] | SEAL-O-RING | |
| 259-7138 | [1] | PLUG | |
| 8 | 299-5318 | [2] | Keterangan: |
| 9 | 362-8194 | [1] | Rumah-PiniON |
| 11 | 503-6319 | [2] | HUSING-AXLE |
| 12 | 388-0747 | [2] | SHAFT-AXLE |
| 13 | 388-1398 | [2] | PEMBANGUNAN KAYAK |
| 14 | 392-1781 | [1] | Dukungan AS-TRUNNION |
| 3D-8417 | [2] | TIPU SEAL-LIP | |
| 6V-7979 | [1] | Pengendalian cincin | |
| 213-1366 | [1] | BUSHING | |
| 15 | 392-1782 | [1] | Dukungan AS-TRUNNION |
| 213-1365 | [1] | BUSHING | |
| 16 | 503-6316 | [1] | Perumahan AS |
| 17 | 434-7982 | [1] | TRUNNION |
| 18 | 164-4180 | [2] | PLUG AS |
| (SATU-SATU TERTINGGI) | |||
| 7M-8485 | [1] | SEAL-O-RING | |
| 9S-4181 | [1] | PLUG (1-5/16-12-THD) | |
| 19 | 1M-6573 | [2] | TASIK-LAYER (ROLLER TAPERED) |
| 20 | 242-1811 M | [26] | Kepala Bolt-Cylinder (M16X2X220) |
| 21 | 418-6609 M | [3] | Kepala bolt-flange (M8X1.25X80-MM) |
| 22 | 4B-9373 | [2] | KONUS-BEARING (ROLLER TAPERED) |
| 23 | 4B-9374 | [2] | TASIK-LAYER (ROLLER TAPERED) |
| 24 | 4F-7388 | [2] | SEAL-O-RING |
| 25 | 4H-6520 | [1] | SEAL-O-RING |
| 26 | 5P-8247 | [64] | WASHER-HARD (17X32X3.5-MM THK) |
| 27 | 6C-5304 M | [26] | BOLT (M16X2X110-MM) |
| 28 | 6V-5686 M | [12] | BOLT (M16X2X50-MM) |
| 29 | 6V-7732 M | [6] | BOLT (M10X1.5X25-MM) |
| 30 | 7M-8485 | [1] | SEAL-O-RING |
| 31 | 8F-1959 | [2] | Pengendalian cincin |
| 32 | 8T-0657 M | [10] | BOLT (M20X2.5X160-MM) |
| 33 | 8T-3282 | [10] | WASHER-HARD (22X35X3.5-MM THK) |
| 34 | 9C-6041 | [2] | Dowell |
| 35 | 9X-2027 | [6] | WASHER (11X18X2-MM THK) |
2. 2131366 gambar:
4E bushing katalog:
| 2131366 | 2073216 | 2131368 |
| 1414055 | 1782830 | 1320985 |
| 5I8522 | 1414055 | 1165347 |
| 417696 | 2K0713 | 1T0279 |
| 1108839 | 2131370 | 1955951 |
| 1320985 | 3807370 | 4V8520 |
5. FAQ
T: Bisakah aku mendapatkan ukuran ring bus 2131366?
A: Tentu saja, saya bisa mengirim Anda melalui pesan online atau pesan Whatsapp.
T: Dapatkah saya menegosiasikan harga?
A: Tentu, kami mungkin mempertimbangkan diskon untuk pesanan produk massal.
T: Di mana produk Anda telah dijual?
A: Produk kami telah dijual ke Amerika, India, Korea, Afrika dan negara lain di seluruh dunia.
T: Bisakah Anda membuatnya dari bahan lain?
A: Ya, kami dapat menyediakan Anda FKM, PTFE, dll sesuai dengan kebutuhan Anda.
6. Pameran & Gudang
Segel Minyak, Segel Hidraulik, Kit Segel Silinder, Dan Lebih Banyak
